General
Manufacturer
HP
Model

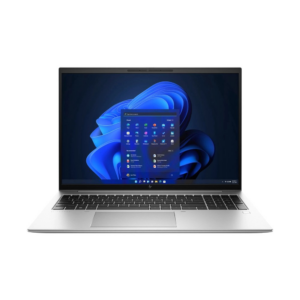

EliteBook 860 G9
Product line
EliteBook 800 series
Device type
Laptop
Chassis size
16"
Platform
Intel Evo / Intel vPro optional, depending on configuration
Intended use
Business-class laptop
Chassis material
Aluminum
Color
Silver
Model year
2022
Display
Screen size
16"
Panel type
IPS
Resolution
1920 x 1200
Aspect ratio
16:10
Touchscreen
Optional, depending on configuration
Brightness
250–1000 nits, depending on panel
Anti-glare coating
Yes
Low Blue Light
Yes, optional depending on panel
Enhanced privacy filter
HP Sure View Reflect optional
Color gamut
45% NTSC or 100% sRGB, depending on panel
Processor
Processor manufacturer
Intel
Processor generation
12th generation Intel Core
Processor series
Core i5 / Core i7
Available processors
Intel Core i5-1235U, i5-1245U, i7-1255U, i7-1265U
Number of cores
10 cores, depending on processor
Number of threads
12
Maximum clock speed
up to 4.8 GHz, depending on processor
Cache
12 MB or 16 MB Intel Smart Cache, depending on processor
vPro support
Optional
TDP
15 W, depending on processor
Memory
Memory type
DDR5
Memory speed
4800 MHz
Installed memory
8 GB / 16 GB / 32 GB, depending on configuration
Maximum memory
64 GB
Number of memory slots
2 SODIMM
Dual-channel memory
Yes
Memory expandability
Yes
ECC support
No
Storage
Storage type
SSD
Interface
PCIe NVMe M.2
Installed capacity
256 GB / 512 GB / 1 TB, depending on configuration
Maximum capacity
up to 2 TB, depending on configuration
SSD form factor
M.2 2280
Opal 2.0 support
Optional
Self-encrypting drive
Optional
Secondary storage
No
Graphics
Integrated graphics
Intel Iris Xe Graphics
Discrete graphics
NVIDIA GeForce MX570A optional
Graphics memory type
Shared system memory / GDDR6 in case of discrete GPU
Hardware video acceleration
Yes
External display support
Yes
DirectX support
Yes
OpenGL support
Yes
Battery
Battery type
Lithium-ion, HP Long Life
Number of cells
3-cell or 6-cell, depending on configuration
Battery capacity
51 Wh or 76 Wh, depending on configuration
Charging technology
HP Fast Charge
Fast charging
up to 50% in about 30 minutes
Power adapter
65 W USB-C
Power adapter type
External AC adapter
USB-C charging
Yes
Connectivity
Wi‑Fi
Wi‑Fi 6E (802.11ax), depending on configuration
Bluetooth
Bluetooth 5.2 or newer
Cellular
4G LTE optional
Ethernet
No, via adapter
USB-A
2 x USB 3.2 Gen 1
Thunderbolt
2 x Thunderbolt 4 / USB4 Type-C
HDMI
1 x HDMI 2.0b
Headphone jack
1 x 3.5 mm combo audio port
SIM card slot
Optional nano-SIM, depending on WWAN configuration
Docking support
USB-C / Thunderbolt docking
Audio
Number of speakers
2
Audio system
Bang & Olufsen
Microphones
Dual-microphone array
Built-in microphone
Yes
Noise cancellation
AI-based noise cancellation
Headphone support
Yes, via 3.5 mm combo jack
Camera
Front camera resolution
5 MP
IR camera
Optional
Webcam type
HD/5 MP, depending on configuration
Privacy shutter
Yes
Windows Hello support
Yes, with IR camera
Automatic camera framing
Yes, depending on software support
Keyboard
Keyboard type
Full-size keyboard
Backlighting
Yes, optional depending on configuration
Numeric keypad
Yes
Spill resistance
Yes
Touchpad
Clickpad with multi-touch support
Fingerprint reader
Optional
Pointing device
Touchpad
Security
TPM
TPM 2.0
BIOS protection
HP Sure Start
Anti-malware protection
HP Sure Click
Data protection
HP Sure Sense
Display privacy
HP Sure View Reflect optional
Physical security lock
Nano Security Lock slot
Fingerprint reader
Optional
Facial recognition
Optional, with IR camera
Self-healing BIOS
Yes
Drive encryption
Optional
Operating system
Preinstalled operating system
Windows 11 Pro
Alternative operating system
Windows 11 Home or FreeDOS, depending on configuration
Architecture
64-bit
Security features support
Microsoft Secured-core optional
Business management support
Yes, on vPro configurations
Dimensions and weight
Width
35.87 cm
Depth
25.18 cm
Thickness
1.92 cm
Weight
starting from 1.76 kg
Product form
Clamshell laptop
Chassis durability
MIL-STD-810H tested
Environment and operating conditions
Energy efficiency
ENERGY STAR certified, depending on configuration
EPEAT
EPEAT registered, depending on region
Recycled materials
Yes, partially recycled plastic and metal
Operating temperature
5 °C to 35 °C
Storage temperature
-20 °C to 60 °C
Relative humidity during operation
10% to 90%
Relative humidity during storage
5% to 95%
