General
Manufacturer
Lenovo
Model

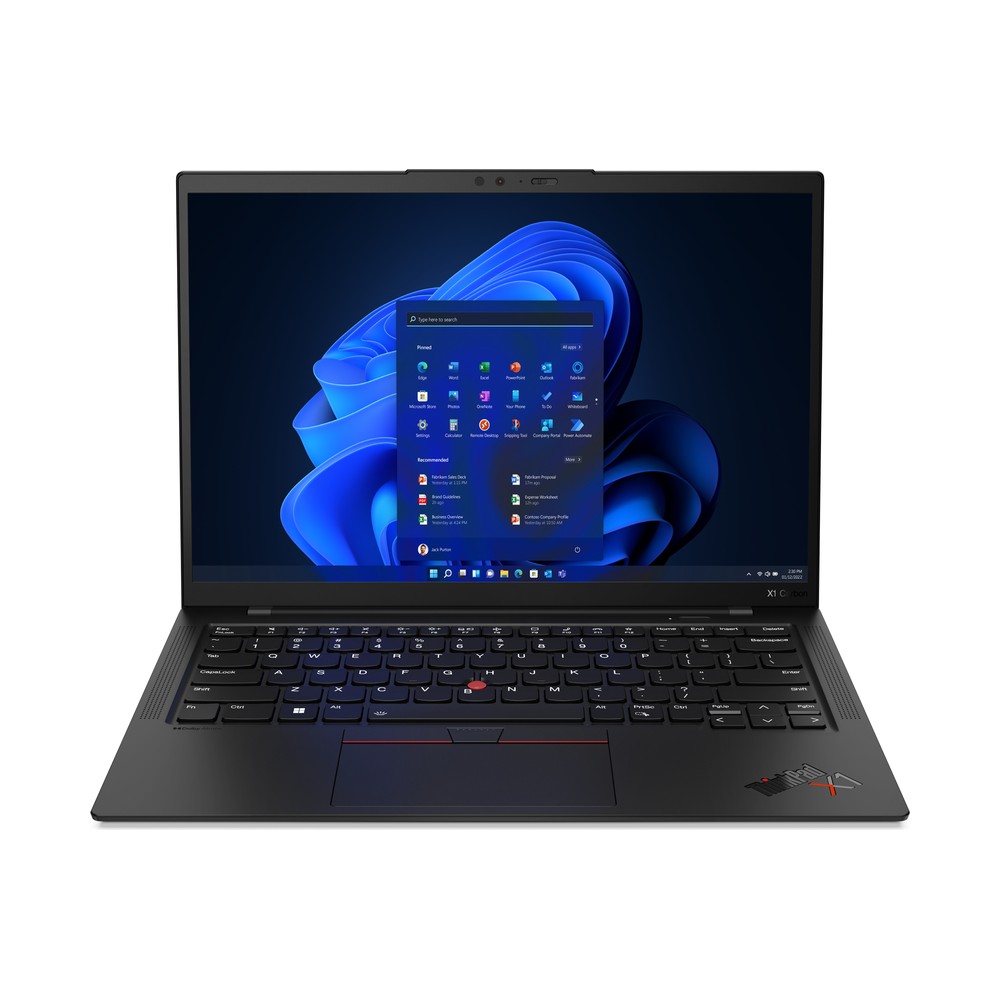

ThinkPad X1 Carbon Gen 11
Product line
ThinkPad X1 Carbon
Device type
Laptop
Form factor
Clamshell, 14" business-class ultrabook
Case material
Carbon fiber composite (top cover), aluminum/magnesium alloy (base)
MIL-STD compliance
MIL-STD-810H
Color
Deep Black
Intended use
Business use, mobile productivity
Model generation
11th generation
Display
Screen size
14.0"
Panel type
IPS or OLED depending on configuration
Aspect ratio
16:10
Native resolution
1920 x 1200 pixels (WUXGA)
Alternative resolutions
2240 x 1400 pixels or 2880 x 1800 pixels depending on configuration
Touch support
Optional, depending on display configuration
Brightness
400–500 nits depending on panel
Anti-glare coating
Yes, on selected matte panels
Color gamut support
100% sRGB or DCI-P3 depending on panel
Eyesafe support
Optional, depending on display configuration
Processor
Processor manufacturer
Intel
Platform
13th generation Intel Core U/P-series
Processor options
Intel Core i5-1335U, Core i5-1345U, Core i7-1355U, Core i7-1365U, Core i5-1340P or Core i7-1360P depending on configuration
Architecture
Hybrid architecture, Performance and Efficient cores
Core count
10 or 12 cores depending on processor
Thread count
12 or 16 depending on processor
Maximum clock speed
Up to 5.0 GHz depending on processor
Cache
Up to 18 MB Intel Smart Cache
AI support
Intel Gaussian & Neural Accelerator 3.0 on selected configurations
vPro support
Optional Intel vPro Enterprise, depending on processor
Memory
Memory type
LPDDR5
Memory speed
5200 MT/s or 6400 MT/s depending on configuration
Installed memory
8 GB, 16 GB, 32 GB or 64 GB
Memory slots
None
Memory placement
Soldered to motherboard
Dual-channel memory
Yes
ECC support
No
Storage
Storage type
SSD
Interface
M.2 2280 PCIe 4.0 x4 NVMe
Capacities
256 GB, 512 GB, 1 TB or 2 TB
OPAL support
Optional OPAL 2.0 self-encrypting SSD
RAID support
No
Expandability
Limited by user, internal M.2 SSD
Memory card reader
None
Graphics
Graphics solution
Integrated
GPU
Intel Iris Xe Graphics or Intel UHD Graphics depending on processor
Discrete graphics
None
Graphics memory
Shared system memory
External display support
Up to 4 independent displays including the laptop screen depending on dock and port usage
Hardware video acceleration
Yes
DirectX support
DirectX 12
OpenGL support
OpenGL 4.6
Battery
Battery capacity
57 Wh
Battery type
Integrated lithium-polymer battery
Number of cells
3-cell
Charging technology
USB-C charging
Fast charging
Rapid Charge support
Power adapter wattage
65 W USB-C
Power input
100–240 V AC, 50/60 Hz
Battery replaceability
Built-in, service-replaceable
Connectivity
Wi‑Fi
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth 5.1 or 5.3 depending on configuration
Mobile data
Optional 4G LTE or 5G WWAN
Ethernet
No integrated RJ-45
Thunderbolt
2 x Thunderbolt 4 / USB4
USB-A
2 x USB 3.2 Gen 1 Type-A
HDMI
1 x HDMI 2.0b
Audio jack
1 x 3.5 mm combined audio port
SIM slot
Nano-SIM or eSIM depending on WWAN configuration
Docking support
Thunderbolt docks and USB-C docks
Ports and interfaces
Number of USB-C ports
2
USB-C functions
Thunderbolt 4, Power Delivery, DisplayPort 1.4
Number of USB-A ports
2
USB-A standard
USB 3.2 Gen 1
Video output
HDMI 2.0b, DisplayPort via USB-C/Thunderbolt
Combined audio jack
Yes
Security slot
Kensington Nano Security Slot
Card reader
None
Audio
Number of speakers
4
Speaker configuration
2 x tweeters + 2 x woofers
Audio system
Dolby Atmos
Microphones
Dual- or quad-microphone array depending on configuration
Noise cancellation
Yes, microphone noise cancellation
Audio jack type
3.5 mm combined headphone/microphone jack
Smart Amp
Yes
Camera
Webcam resolution
1080p FHD
IR camera
Optional, for Windows Hello
Privacy shutter
Yes, webcam privacy shutter
Camera placement
Top display bezel
Computer vision support
Optional Computer Vision
Auto framing
Optional software support
Facial recognition
Optional with IR camera
Keyboard
Keyboard type
ThinkPad spill-resistant keyboard
Backlight
Yes
Layout
Depending on region
Key travel
Approximately 1.5 mm
TrackPoint
Yes
Touchpad
Multi-touch Precision touchpad
Glass-pattern touchpad
Yes, depending on configuration
Liquid resistance
Yes, spill-resistant design
Security
Fingerprint reader
Yes, integrated into the power button or on the palm rest depending on configuration
TPM
Discrete TPM 2.0
Facial recognition
Optional Windows Hello with IR camera
Display privacy
Optional PrivacyGuard
Chassis intrusion detection
Optional
Kensington lock
Yes, Nano Security Slot
BIOS protection
Yes, Self-Healing BIOS
dTPM management
Yes
Sensors
Proximity sensor
Optional human presence detection
Ambient light sensor
Optional
Accelerometer
Yes
Hall sensor
Yes
Fingerprint sensor
Optional/yes depending on configuration
Dimensions and weight
Width
315,6 mm
Depth
222,5 mm
Thickness
15,36 mm
Weight
From 1,12 kg
Chassis profile
Thin and light
Product class
Ultraportable 14" laptop
Operating system
Preinstalled operating system
Windows 11 Pro or Windows 11 Home depending on configuration
Alternative operating system
Optional without OS or Linux-certified configurations in selected markets
Security integration
Windows Hello support
Management support
Microsoft Autopilot and enterprise management support
BitLocker support
Yes, via TPM 2.0
Environment and operating conditions
Operating temperature
5 °C to 35 °C
Storage temperature
-5 °C to 43 °C
Operating humidity
8% to 95%
Storage humidity
5% to 95%
Energy efficiency
ENERGY STAR certification depending on configuration
Environmental certifications
EPEAT registration depending on region
